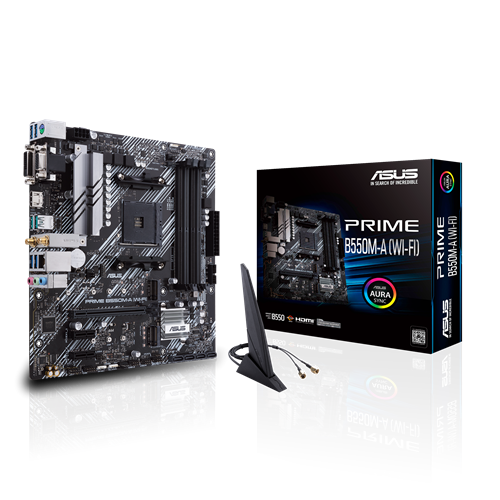

Mainboard Asus Prime B550M-A Wifi II (AMD B550, AM4, m-ATX, 4 khe RAM DRR4, Wi-Fi 6 AX200)

– CPU hỗ trợ: AMD AM4 Socket (3rd & 2nd AMD Ryzen™, 2nd & 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors)
– Chipset: AMD B550
– Bộ nhớ trong (RAM):
+ Hỗ trợ tối đa: 128GB (4 x DIMM)
+ Tốc độ RAM (OC): DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200…/2133 MHz Un-buffered
+ Tính năng: Hỗ trợ bộ nhớ ECC (tùy CPU)
– Hiển thị đồ họa (Output):
+ 1 x D-Sub
+ 1 x DVI-D
+ 1 x HDMI 2.1 (4K@60HZ)
– Khe mở rộng:
+ 3rd Gen AMD Ryzen™: 1 x PCIe 4.0 x16 (x16 mode)
+ AMD B550 Chipset: 2 x PCIe 3.0 x1
– Chuẩn lưu trữ:
+ Tổng cộng: 2 x M.2 slots, 4 x SATA 6Gb/s ports
+ M.2 (CPU): 1 x M.2 Socket 3 (Type 2242/2260/2280/22110) (PCIE 4.0 x4 và SATA modes)
+ M.2 (B550): 1 x M.2 Socket 3 (Type 2242/2260/2280) (PCIE 3.0 x4 và SATA modes)
+ SATA: 4 x SATA 6Gb/s port(s) (Hỗ trợ Raid 0, 1, 10)
– Mạng:
+ LAN: Realtek RTL8111H 1Gb Ethernet
+ Wi-Fi: Intel® Wi-Fi 6 AX200 (802.11 a/b/g/n/ac/ax 2×2, 2.4Gbps max, 2.4/5 GHz)
+ Bluetooth: v5.1 (yêu cầu Win 10 build 19041+)
– Âm Thanh:
+ CODEC: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
+ Tính năng: LED-illuminated design, Audio Shielding, Dedicated audio PCB layers, Premium Japanese audio capacitors
– Cổng kết nối ngoài (I/O Sau):
+ 1 x PS/2 keyboard/mouse combo port(s)
+ 1 x DVI-D, 1 x D-Sub, 1 x HDMI
+ 1 x LAN (RJ45) port(s)
+ 2 x USB 3.2 Gen 2 (teal blue) Type-A
+ 4 x USB 3.2 Gen 1 (blue) Type-A
+ 3 x Audio jack(s)
+ 1 x ASUS Wi-Fi Module
– Kết nối trong (Header/Connector):
+ Fan: 1x CPU Fan, 1x CPU OPT Fan, 2x Chassis Fan
+ RGB: 2x Aura RGB Strip Headers, 1x Addressable Gen 2 header(s)
+ USB: 1x USB 3.2 Gen 1 (hỗ trợ thêm 2 cổng), 2x USB 2.0 (hỗ trợ thêm 4 cổng)
+ M.2/SATA: 2x M.2 Socket 3, 4x SATA 6Gb/s
+ Khác: 1x SPI TPM header, 1x S/PDIF out header(s), 2x EATX Power connector, 1x Front panel audio (AAFP), 1x Clear CMOS jumper, 1x System panel, 1x COM port header, 1x Speaker connector
– Kích thước:
+ Form Factor: mATX Form Factor
+ Kích thước vật lý: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

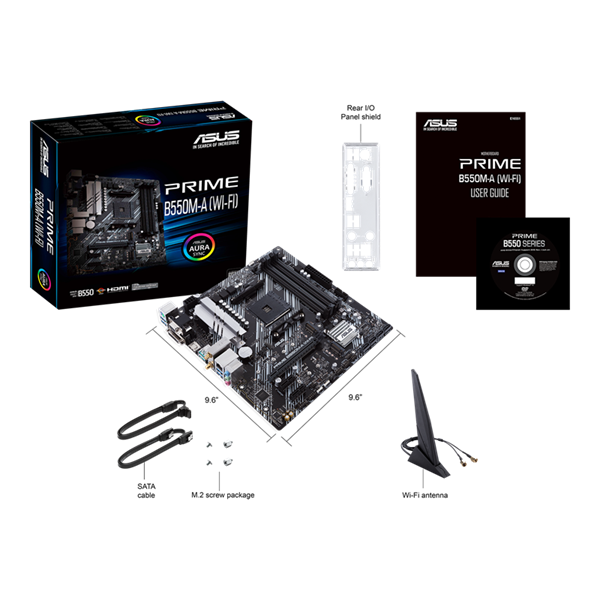

– Phụ kiện: I/O Shield, 2x SATA 6Gb/s cable, Supporting DVD, User manual, 1x Wi-Fi moving antenna, 1x M.2 SSD screw package(s)
